Pixel pitch explained: how to choose the right LED pitch

What pixel pitch actually measures

Pixel pitch is the distance in millimetres from the centre of one LED pixel to the centre of the next. A P2.5 display has pixels 2.5 mm apart; a P6 display has them 6 mm apart. That is the whole definition.

Because it is a measure of spacing rather than of quality, a smaller number means more pixels packed into the same square metre. A square metre of P2.5 holds 160,000 pixels. The same area at P1.2 holds roughly 694,000. That ratio is why fine-pitch displays cost what they do — you are buying four times the componentry, driver capacity and calibration work for the same physical size.

It follows that pitch has no inherent 'better'. A P10 billboard is not a worse product than a P1.2 control-room wall. They are solving different problems at different distances, and using either in the other's place would be a specification error.

The rule that decides it: viewing distance

The useful rule of thumb is that the pixel pitch in millimetres is roughly the minimum comfortable viewing distance in metres. A P2 display looks clean from about two metres back. A P6 display wants six metres or more.

Closer than that and the eye starts resolving individual pixels, so the image reads as a grid of dots rather than a picture. Further away and you simply stop being able to perceive the extra detail you paid for — the display looks identical to a coarser, cheaper one.

This is why the first question worth answering is not 'what pitch do I want' but 'where will people stand'. Measure the closest position anyone will regularly view from, and let that set the floor. In practice most rooms have a natural answer: a boardroom table sets it at two or three metres, a shop window at one or two, a roadside billboard at thirty or more.

Where the money goes wrong

The most common expensive mistake is specifying finer than the distance requires. A billboard read from thirty metres works perfectly at P6 to P10. Fit it at P4 and you have roughly doubled the pixel count — and the cost — to deliver detail no driver will ever see from a moving car.

The opposite error is rarer but more damaging, because it cannot be fixed. A shop window screen at P6 viewed by pedestrians a metre away will always look coarse. No processing, brightness or content improves it; the pixels are simply too far apart for that distance. Under-specifying pitch is a permanent problem, whereas over-specifying is only ever a financial one.

There is also a subtler trade to understand. At a fixed budget, pitch competes with everything else in the system — brightness, redundancy, calibration quality, structure and control. On an outdoor screen in particular, money moved from unnecessary pitch into brightness and IP rating buys a display that actually works, which is a considerably better outcome.

Typical pitch by application

Control rooms and command centres sit at P0.9 to P1.5, because operators work a metre or two from the wall and read dense data on it all day.

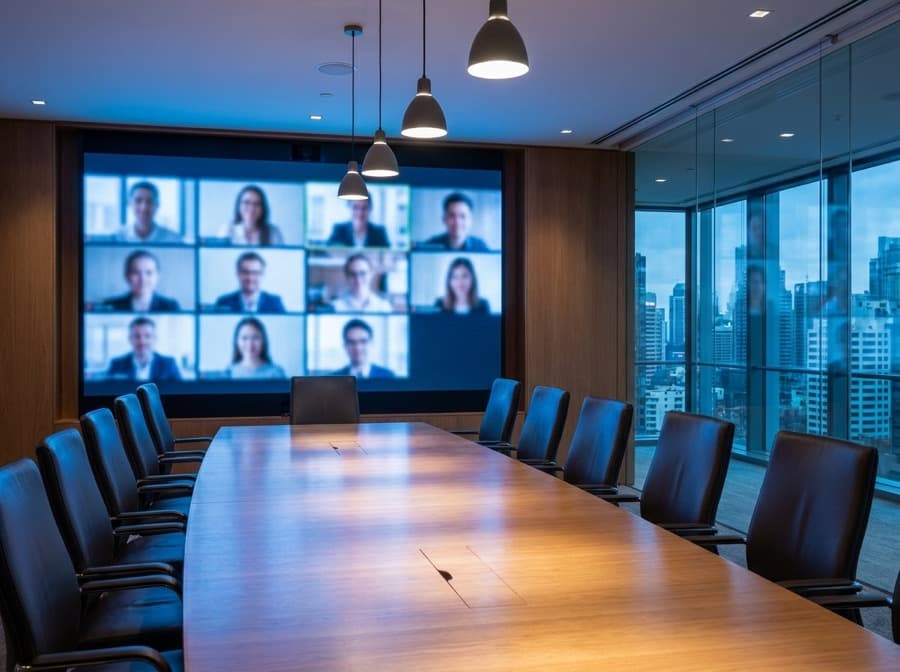

Boardrooms and premium meeting rooms sit at P1.2 to P1.8 — close viewing, small text, and an audience that notices quality.

Retail interiors and mall signage typically land at P1.5 to P2.6, where customers stand within a few metres.

Indoor rental and event backdrops usually work at P2.6 to P3.9, since audiences are seated further back and the panels have to be light and quick to rig.

Outdoor rental and open-air staging runs P3.9 to P4.8; roadside and highway DOOH sits at P4 to P10 depending on how close traffic gets and how fast it is moving.

What pitch does not tell you

Two displays at the same pitch can perform very differently. Pitch says nothing about brightness, which is what decides whether an outdoor screen is readable at midday. It says nothing about refresh rate, which decides whether the screen films without banding. It says nothing about grayscale bit depth, which decides whether a dim control room keeps its shadow detail, or about calibration and binning, which decide whether the wall stays uniform over years of use.

Treat pitch as the first filter rather than the specification. Once the viewing distance has set a sensible pitch range, the decisions that actually separate a good install from a poor one are the ones that follow it.
