COB vs SMD LED displays: what actually differs

SMD: individual lamps on the board surface

Surface-mount device packaging is the long-standing approach. Each pixel is a small package containing red, green and blue diodes, soldered individually onto the panel surface. Those packages sit proud of the board — physically raised, and exposed.

SMD is mature, well understood and cost-effective, and for the majority of installations it remains the correct choice. An outdoor billboard at P6, a rental wall at P3.9, a mall display at P2.5 — SMD does all of these well and there is no engineering reason to pay for anything else.

COB: diodes sealed under a resin layer

Chip-on-board mounts the bare LED dies directly onto the board and then encapsulates the whole surface under a hardened resin layer. There are no individual packages standing proud — the face of the panel is a continuous, flat, sealed surface.

That single construction difference produces most of the practical advantages. The diodes cannot be knocked off, because there is nothing protruding to knock. Dust and moisture cannot reach them. The flat resin face reflects far less ambient light than a field of raised packages, which raises perceived contrast in a lit room. And because the dies can be placed closer together without package walls between them, COB reaches finer pitches than SMD practically can.

Where the difference actually matters

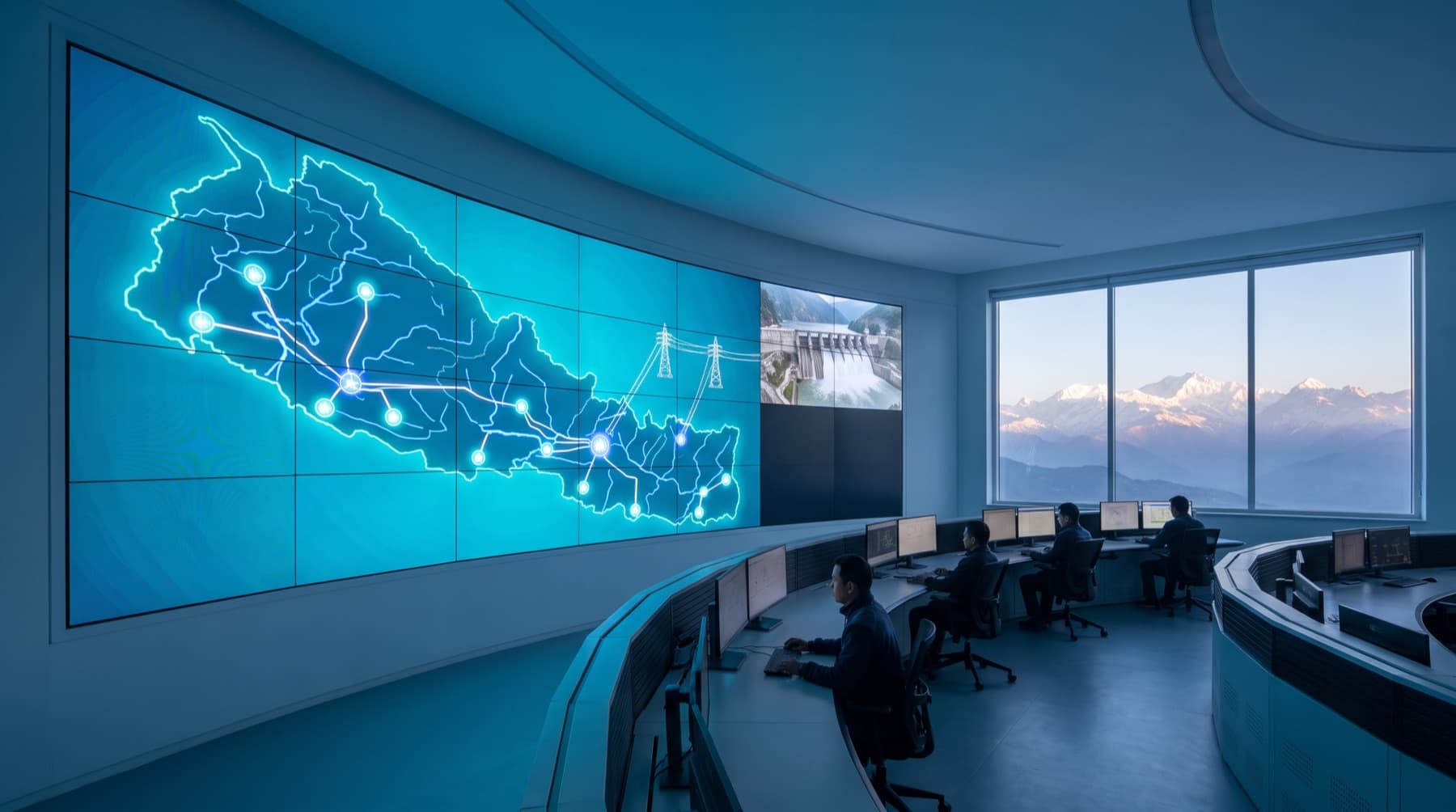

Physical durability is the headline. On a fine-pitch SMD wall, the dominant failure mode is not electrical — it is mechanical. A sleeve, a trolley, a cleaning cloth or a badly handled panel knocks a lamp off, and that pixel is dead until the module is replaced. In a control room or a lobby where people pass within touching distance of the wall, this accumulates.

Contrast is the second. The flat sealed surface reflects less ambient light, so blacks look genuinely black rather than dark grey in a room with the lights on. In a control room deliberately kept dim, or a boardroom with windows, that difference is immediately visible.

Cleaning and maintenance follow from both. A COB surface is wiped down without risk. An exposed fine-pitch SMD surface is cleaned carefully, or not at all — which in a dusty environment becomes its own problem.

The honest case for SMD

COB costs more, and at coarser pitches it buys very little. Above roughly P2, the SMD packages are large enough to be mechanically robust, the surface area given over to reflective package walls is proportionally small, and pitch is not near any manufacturing limit. Paying a COB premium for an outdoor billboard is money that would do more good spent on brightness or a better structure.

There is also availability and serviceability to weigh. SMD is ubiquitous, so modules and spares are easy to source and match. That matters over a ten-year service life, and it matters more in a market where importing a replacement part is a matter of weeks rather than days.

The practical rule

Below about P1.5, specify COB. The mechanical fragility of fine-pitch SMD is real, and the contrast advantage is exactly what close-viewing applications need.

Between P1.5 and P2.5, it is a judgement call. Weigh how close people get, whether the wall will be touched, how dusty the environment is, and how much the room's lighting works against contrast.

Above P2.5, SMD unless there is a specific reason otherwise. Put the money into brightness, refresh rate, redundancy and structure instead — those will decide whether the installation succeeds.
