Lampro · Indoor Commercial & Signage

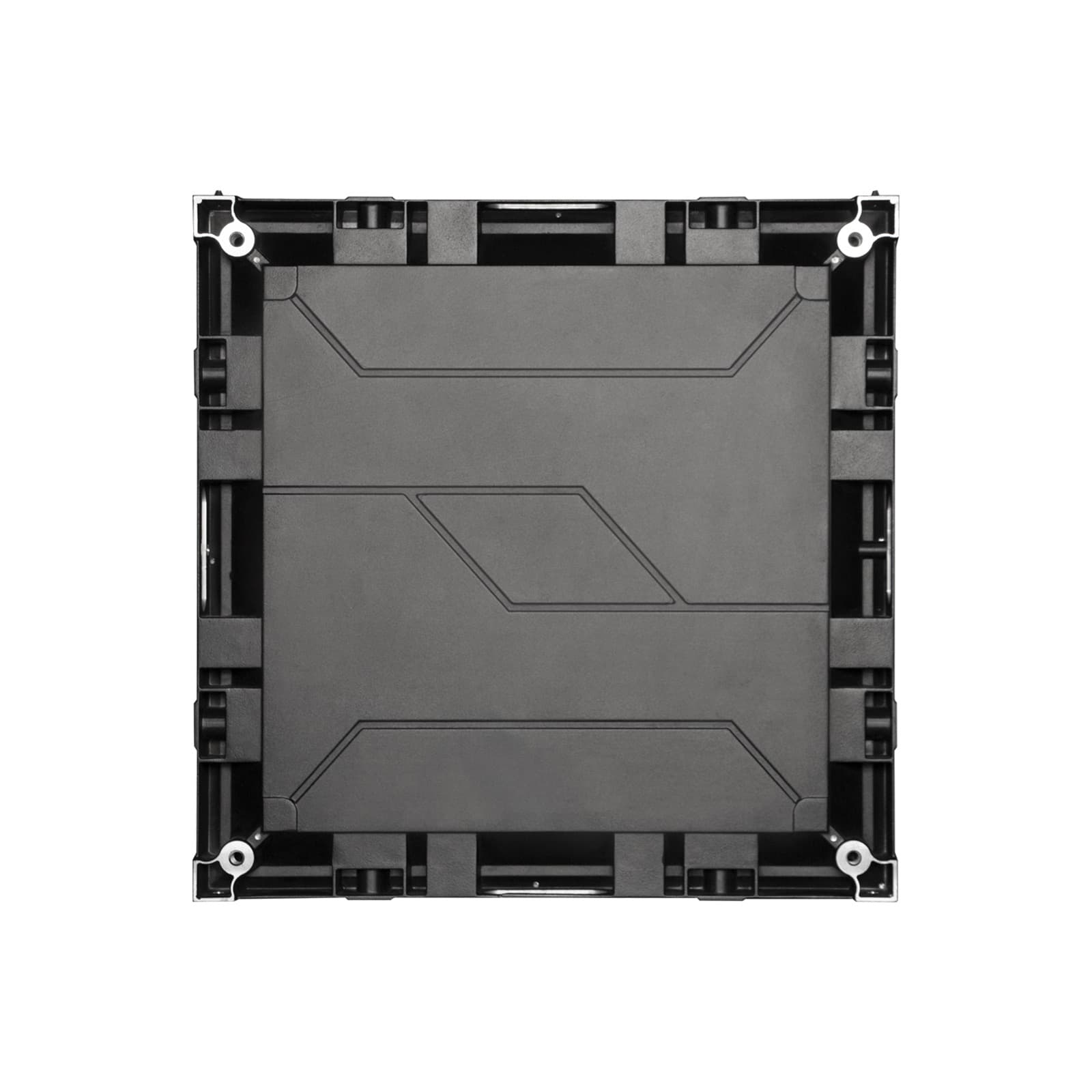

Lampro LDT Pro 3.0
Lampro's standard 3 mm signage panel — the most commonly installed indoor commercial screen in Nepal.
Pixel pitch
P3
Brightness
1,000 nits
Refresh
3,840 Hz
Use
Indoor
How it connects
Your source to this wall
Every Lampro wall we supply ships as a complete signal chain \u2014 including the NovaStar control layer most suppliers leave for you to figure out.
How it connects
source
Source (PC / player / camera)
processor
NovaStar MX20
controller
Sending & receiving cards
wall
Lampro LDT Pro 3.0
Engineering
Major features, part by part
Hover any numbered point to see what it does and why it matters on site.
Configurator
Size your Lampro wall
Set your use case and the target size — we compute cabinets, resolution, power and weight instantly.
Use case
Cabinet 640×480 mm · pitch P3. Figures are indicative — confirmed on site survey.
Cabinets
8 × 7
56 total
Resolution
1704 × 1120
1.9 megapixels
Physical size
5.12 × 3.36 m
17.2 m²
Avg power
3.2 kW
9.7 kW peak
Weight
448 kg
26 kg/m²
Pixel pitch
P3
1,000 nits
Why this model
Best cost per m²
The value sweet spot for large indoor areas viewed from 3 m+.
Easy front service
Modules swap fast so signage never sits dark.
CMS ready
Schedule content by daypart from one dashboard.
Specifications
Applications
FAQ
What pitch for a mall atrium?
P2.5–P4 is ideal where viewers stand 3–8 m away.
Will it look sharp?
Viewing distance & image quality
Minimum viewing distance
3 m
Closest a viewer should stand
Comfortable distance
7.5 m
Where the image looks its best
Pixels per m²
111,111
Density at this pitch
Brightness
1,000 nits
Comfortable indoors
Rule of thumb: minimum viewing distance in metres \u2248 pixel pitch in millimetres. Final figures confirmed on site survey.
What you actually receive
A complete system, not just panels
LED cabinets & modules
Lampro LDT Pro 3.0 · 640×480 mm
Control system
NovaStar MX20 + receiving cards
Power & data cabling
Looms, distribution and redundancy
Mounting structure
Wall frame, floor stand or truss
Spare modules & PSU
Held in Kathmandu for fast swap
Commissioning
Calibration, content test, handover training
How we deliver it
Site survey
We measure the space, power and sightlines — free across Nepal.
Structure & install
Fabrication, mounting and cabling by our certified engineers.
Commissioning
Calibration, controller setup and operator training.
AMC & support
Annual maintenance with spares stocked locally.
Warranty
Up to 3 years
Honoured locally in Nepal
Indicative lead time
2\u20134 weeks
Ex-stock items ship faster
Certifications
Also consider
Lampro
LCM 2.6
Tighter 2.6 mm for showrooms where customers walk right up to the display.
Lampro
RNII 2.6
The most rented pitch in the country: sharp enough for a conference, cheap enough to own a hundred panels.
Lampro
UVF 2.6
Tightest transparent pitch we stock, for close-viewed showroom glass and jewellery frontage.
| Model | Pitch | Brightness | Use | Cabinet |
|---|---|---|---|---|
| Lampro LDT Pro 3.0 (this model) | P3 | 1,000 nits | indoor | 640\u00d7480 mm |
| Lampro LCM 2.6 | P2.6 | 1,000 nits | indoor | 640\u00d7480 mm |
| Lampro RNII 2.6 | P2.6 | 1,200 nits | rental | 500\u00d7500 mm |
| Lampro UVF 2.6 | P2.6 | 3,000 nits | indoor | 1000\u00d7500 mm |
The full Lampro line
Lampro product lines we supply
Lampro — the most-trusted, best-value LED line in Nepal. COB fine pitch, DOOH-grade outdoor, rental staging and transparent, supported locally with genuine warranty.
Ready to spec Lampro LDT Pro 3.0?
Send your size and we'll return an indicative drawing, spec and price.
