Evolve E-P0.9 COBWhatsApp Quote this build

Evolve · Fine Pitch COB — Control Rooms

Evolve E-P0.9 COB

Name: Evolve E-P0.9 COB
Brand: Evolve

Our own-brand 0.9 mm COB — factory-direct pricing with Evolve Tech carrying the warranty and spares here in Nepal.

IndicativeNPR 5.5–11 lakh / m²supply & install · quoted per site

Size my wall Request a quote

1 / 5

Pixel pitch

P0.9

Brightness

600 nits

Refresh

3,840 Hz

Use

Indoor

How it connects

Your source to this wall

Every Evolve wall we supply ships as a complete signal chain \u2014 including the NovaStar control layer most suppliers leave for you to figure out.

How it connects

source

Source (PC / player / camera)

processor

NovaStar MX40 Pro

controller

Sending & receiving cards

wall

Evolve E-P0.9 COB

Engineering

Major features, part by part

Hover any numbered point to see what it does and why it matters on site.

Configurator

Size your Evolve wall

Set your use case and the target size — we compute cabinets, resolution, power and weight instantly.

Use case

Width5.0 m

Height3.0 m

Cabinet 600×337.5 mm · pitch P0.9. Figures are indicative — confirmed on site survey.

Cabinets

9 × 9

81 total

Resolution

6003 × 3375

20.3 megapixels

Physical size

5.40 × 3.04 m

16.4 m²

Avg power

1.9 kW

5.5 kW peak

Weight

567 kg

35 kg/m²

Pixel pitch

P0.9

600 nits

Quote this build →Your configuration is carried into the quote.

Recommended controlNovaStar MX40 Pro4K+ / xR-ready processing for large or broadcast walls.NovaStar →

Why this model

COB durability

Chip-on-board surface resists knocks, dust and cleaning — built for 24/7 duty.

16-bit grayscale

Holds detail in dark scenes so operators read low-light data clearly.

Redundant power & data

N+1 backup keeps the wall alive if a supply or cable fails.

Specifications

Display

Pixel pitch0.9 mm

LED typeCOB (chip-on-board)

Brightness600 nits

Refresh rate3,840 Hz

Colour depth14–16-bit

Viewing angle160° / 160°

Cabinet

Cabinet size600 × 337.5 mm

Resolution / cabinet667 × 375

Weight7 kg

Service accessFront

MountingFixed indoor

Power & environment

Avg power≈ 23 W / cabinet

Max power≈ 68 W / cabinet

IP ratingIP30 (indoor)

Lifespan100,000 hrs

Applications

Control roomsCommand centresBroadcast studiosExecutive boardrooms

FAQ

Is it rated for 24/7 operation?

Yes — COB fine pitch is designed for continuous duty with redundant power and signal.

How close can operators sit?

Comfortably within 1–2 m at these pitches, which suits control-room desks.

Will it look sharp?

Viewing distance & image quality

Minimum viewing distance

0.9 m

Closest a viewer should stand

Comfortable distance

2.3 m

Where the image looks its best

Pixels per m²

1,234,568

Density at this pitch

Brightness

600 nits

Comfortable indoors

Rule of thumb: minimum viewing distance in metres \u2248 pixel pitch in millimetres. Final figures confirmed on site survey.

What you actually receive

A complete system, not just panels

LED cabinets & modules

Evolve E-P0.9 COB · 600×337.5 mm

Control system

NovaStar MX40 Pro + receiving cards

Power & data cabling

Looms, distribution and redundancy

Mounting structure

Wall frame, floor stand or truss

Spare modules & PSU

Held in Kathmandu for fast swap

Commissioning

Calibration, content test, handover training

How we deliver it

Site survey

We measure the space, power and sightlines — free across Nepal.

Structure & install

Fabrication, mounting and cabling by our certified engineers.

Commissioning

Calibration, controller setup and operator training.

AMC & support

Annual maintenance with spares stocked locally.

Warranty

Up to 3 years

Honoured locally in Nepal

Indicative lead time

2\u20134 weeks

Ex-stock items ship faster

Certifications

CERoHSFCCISO 9001

Also consider

Evolve

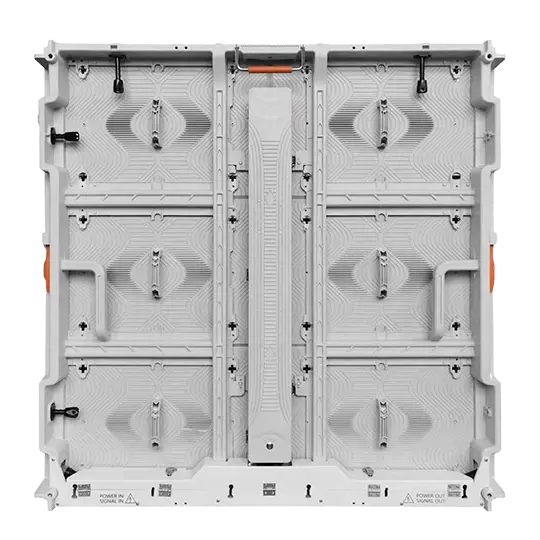

AIO 1.2

Own-brand all-in-one, delivered and commissioned by our own team in Kathmandu.

P1.2indoor

Evolve

E-P1.25 COB

The volume COB in our range: specified for meeting rooms and smaller ops floors where 0.9 mm is more than the room needs.

P1.25indoor

Evolve

E-P1.5

Own-brand 1.5 mm: the same class of panel as the imports at a landed cost we control end to end.

P1.5indoor

Model	Pitch	Brightness	Use	Cabinet
Evolve E-P0.9 COB (this model)	P0.9	600 nits	indoor	600\u00d7337.5 mm
Evolve AIO 1.2	P1.2	600 nits	indoor	600\u00d7337.5 mm
Evolve E-P1.25 COB	P1.25	600 nits	indoor	600\u00d7337.5 mm
Evolve E-P1.5	P1.5	800 nits	indoor	600\u00d7337.5 mm
