Unilumin · Creative & Special-Shaped
Unilumin U-Natural 1.8
Near-invisible when off: the panel to use when the client wants the wall to disappear between shows.
Pixel pitch
P1.8
Brightness
800 nits
Refresh
3,840 Hz
Use
Indoor
How it connects
Your source to this wall
Every Unilumin wall we supply ships as a complete signal chain \u2014 including the NovaStar control layer most suppliers leave for you to figure out.
How it connects
source
Source (PC / player / camera)
processor
NovaStar MX30
controller
Sending & receiving cards
wall
Unilumin U-Natural 1.8
Engineering
Major features, part by part
Hover any numbered point to see what it does and why it matters on site.
Configurator
Size your Unilumin wall
Set your use case and the target size — we compute cabinets, resolution, power and weight instantly.
Use case
Cabinet 500×500 mm · pitch P1.8. Figures are indicative — confirmed on site survey.
Cabinets
10 × 6
60 total
Resolution
2780 × 1668
4.6 megapixels
Physical size
5.00 × 3.00 m
15.0 m²
Avg power
2.3 kW
6.8 kW peak
Weight
480 kg
32 kg/m²
Pixel pitch
P1.8
800 nits
Why this model
Bend to 60°
Flexible modules wrap columns, waves and curved architecture.
Any aspect ratio
Cylinders, spheres, cubes and ribbons — built to the drawing.
Load-bearing floor option
Floor tiles rated for foot traffic and stage use.
Specifications
Applications
FAQ
Can you match our architect's drawing?
Yes — we scope structure, power and content pipeline against the drawing before quoting.
Will it look sharp?
Viewing distance & image quality
Minimum viewing distance
1.8 m
Closest a viewer should stand
Comfortable distance
4.5 m
Where the image looks its best
Pixels per m²
308,642
Density at this pitch
Brightness
800 nits
Comfortable indoors
Rule of thumb: minimum viewing distance in metres \u2248 pixel pitch in millimetres. Final figures confirmed on site survey.
What you actually receive
A complete system, not just panels
LED cabinets & modules
Unilumin U-Natural 1.8 · 500×500 mm
Control system
NovaStar MX30 + receiving cards
Power & data cabling
Looms, distribution and redundancy
Mounting structure
Wall frame, floor stand or truss
Spare modules & PSU
Held in Kathmandu for fast swap
Commissioning
Calibration, content test, handover training
How we deliver it
Site survey
We measure the space, power and sightlines — free across Nepal.
Structure & install
Fabrication, mounting and cabling by our certified engineers.
Commissioning
Calibration, controller setup and operator training.
AMC & support
Annual maintenance with spares stocked locally.
Warranty
Up to 3 years
Honoured locally in Nepal
Indicative lead time
2\u20134 weeks
Ex-stock items ship faster
Certifications
Also consider

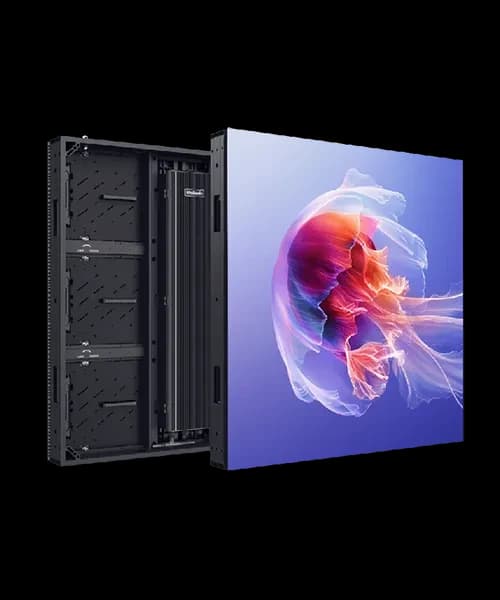

Unilumin
Umeeting 1.8
Conferencing-ready: camera and codec integration handled, so the room works on day one.

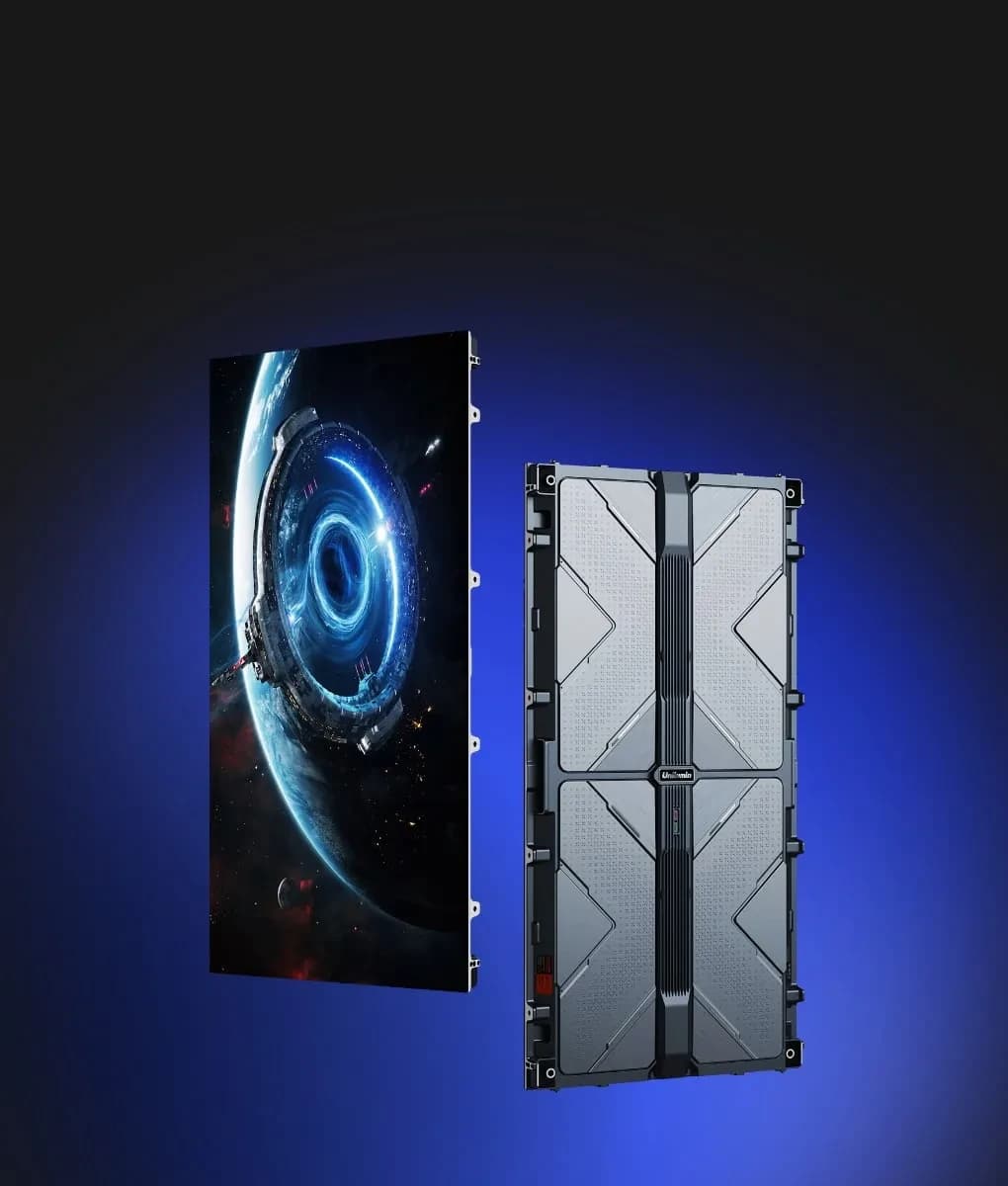

Unilumin
Uslim III SMD 1.9
Under 30 mm deep, so it sits nearly flush on a lobby wall without building out a recess.

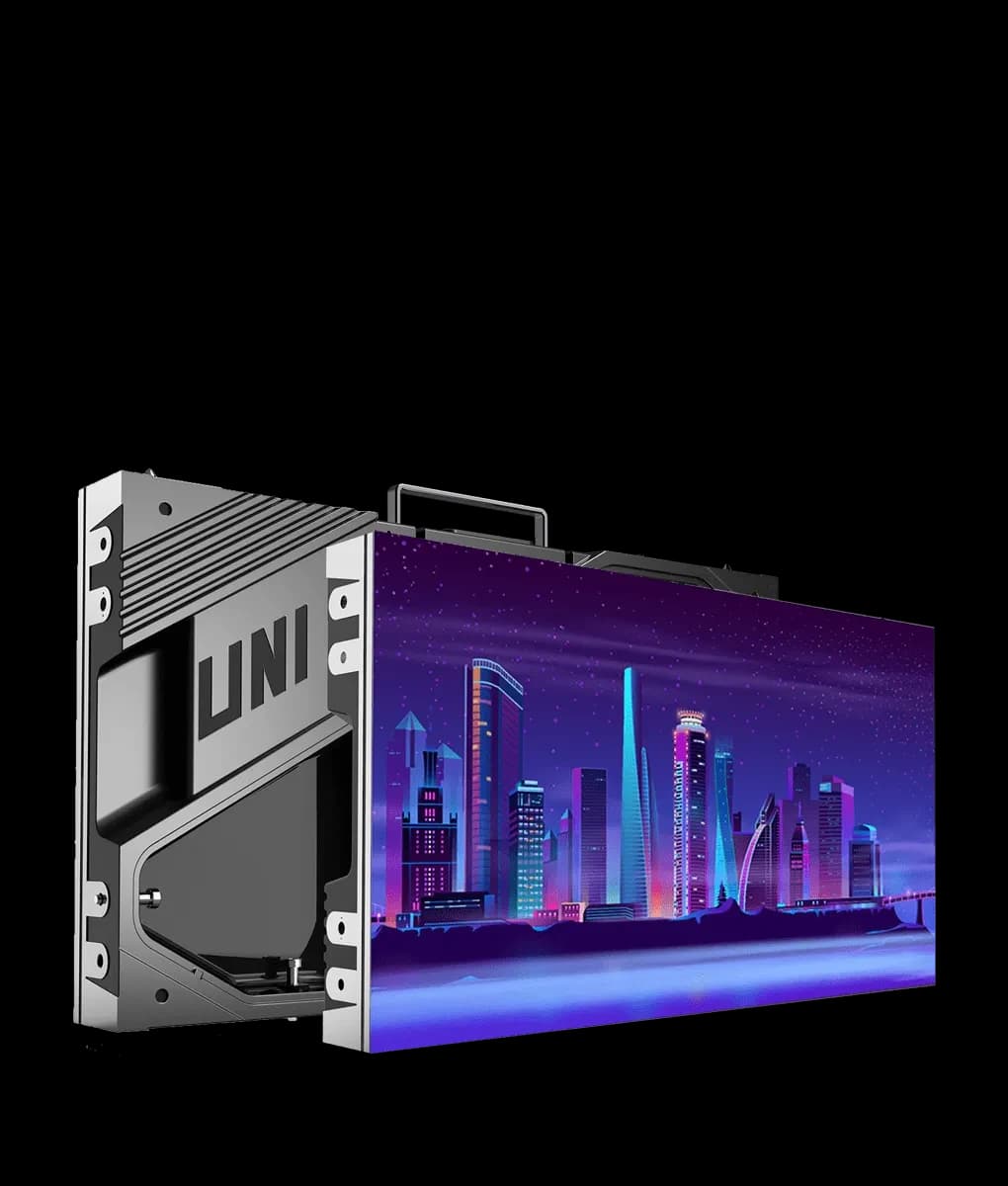

Unilumin
UpanelS 1.5
Seam-free 16:9 cabinet that tiles into an exact 4K wall — no awkward part-panel at the edge of the boardroom.
| Model | Pitch | Brightness | Use | Cabinet |
|---|---|---|---|---|
| Unilumin U-Natural 1.8 (this model) | P1.8 | 800 nits | indoor | 500\u00d7500 mm |
| Unilumin Umeeting 1.8 | P1.8 | 700 nits | indoor | 600\u00d7337.5 mm |
| Unilumin Uslim III SMD 1.9 | P1.9 | 800 nits | indoor | 600\u00d7337.5 mm |
| Unilumin UpanelS 1.5 | P1.5 | 800 nits | indoor | 600\u00d7337.5 mm |
The full Unilumin line
Unilumin product lines we supply
Unilumin's full range in Nepal — control-room fine pitch trusted by Aramco & JANAF, stadium USports, plus creative and rental — with genuine warranty and local install.
Control Room & Command
Upanel 1.2 · Upanel 1.5 · UpanelS 1.2 · UpanelS 1.5 · +6 more
10 models \u2192Fine Pitch Indoor
Umicro · Umini III · Umini III Pro · Uslim III SMD · +1 more
5 models \u2192Sports & Stadium (USports)
UsportX · UsportR · UsportMA II
3 models \u2192Creative & Rental
U-Natural · Udesign SV · UHF · Umake OF Sphere · +3 more
7 models \u2192Ready to spec Unilumin U-Natural 1.8?
Send your size and we'll return an indicative drawing, spec and price.
