ROE Visual Black Marble Floor 4.81WhatsApp Quote this build

ROE Visual · Creative & Special-Shaped

ROE Visual Black Marble Floor 4.81

Name: ROE Visual Black Marble Floor 4.81
Brand: ROE Visual

A genuine load-rated LED floor — people dance on it, and it survives the night.

Quoted per drawinggeometry drives the cost

Size my wall Request a quote

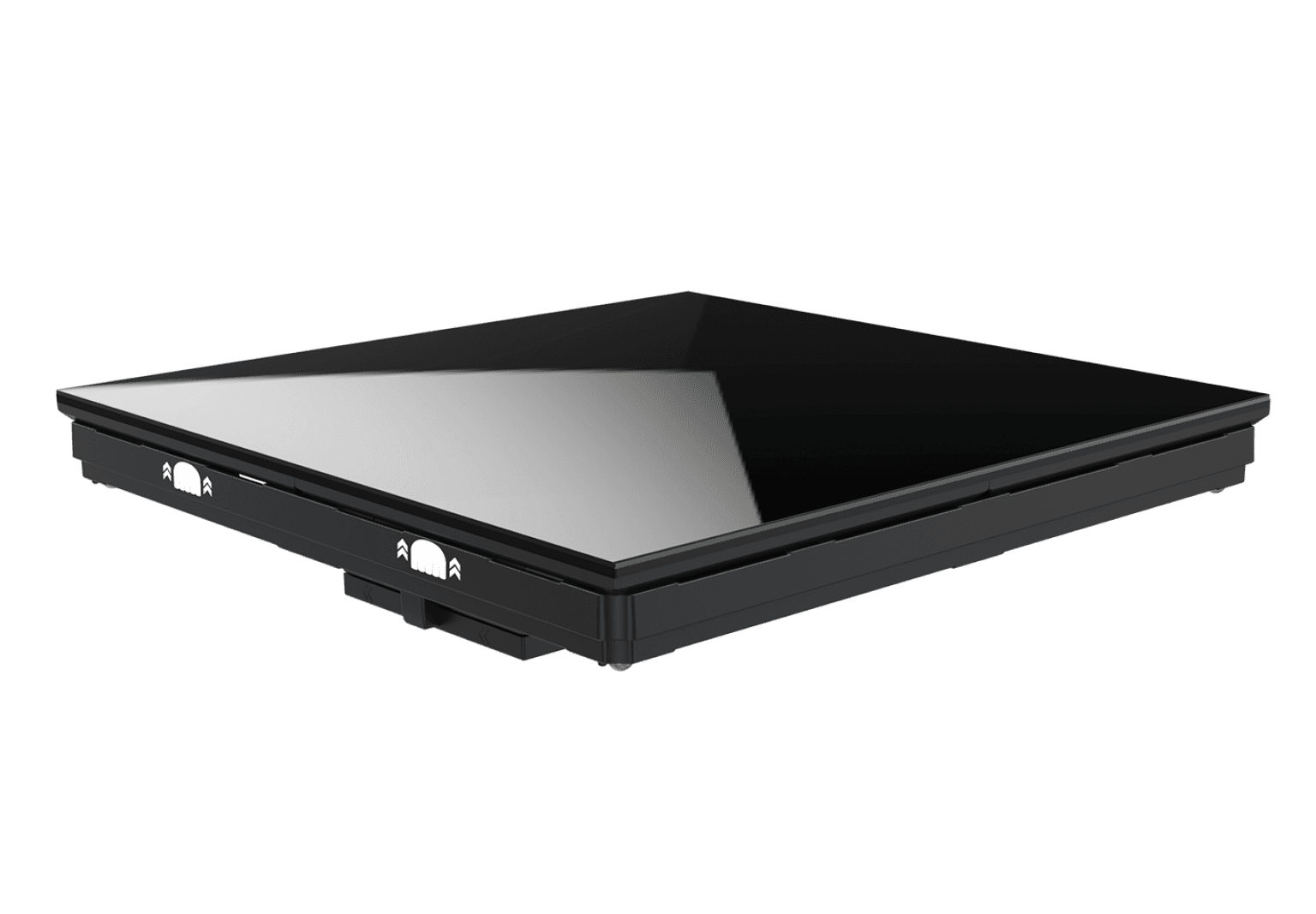

ROE Visual Black Marble Floor 4.81 — Front

1 / 5

Pixel pitch

P4.81

Brightness

1,500 nits

Refresh

7,680 Hz

Use

Indoor

How it connects

Your source to this wall

Every ROE Visual wall we supply ships as a complete signal chain \u2014 including the NovaStar control layer most suppliers leave for you to figure out.

How it connects

source

Source (PC / player / camera)

processor

NovaStar MX20

controller

Sending & receiving cards

wall

ROE Visual Black Marble Floor 4.81

Engineering

Major features, part by part

Hover any numbered point to see what it does and why it matters on site.

Configurator

Size your ROE Visual wall

Set your use case and the target size — we compute cabinets, resolution, power and weight instantly.

Use case

Width5.0 m

Height3.0 m

Cabinet 500×500 mm · pitch P4.81. Figures are indicative — confirmed on site survey.

Cabinets

10 × 6

60 total

Resolution

1040 × 624

0.6 megapixels

Physical size

5.00 × 3.00 m

15.0 m²

Avg power

3.1 kW

9.1 kW peak

Weight

480 kg

32 kg/m²

Pixel pitch

P4.81

1,500 nits

Quote this build →Your configuration is carried into the quote.

Recommended controlNovaStar MX20HD all-in-one control for compact walls.NovaStar →

Why this model

Bend to 60°

Flexible modules wrap columns, waves and curved architecture.

Any aspect ratio

Cylinders, spheres, cubes and ribbons — built to the drawing.

Load-bearing floor option

Floor tiles rated for foot traffic and stage use.

Specifications

Display

Pixel pitch4.81 mm

LED typeSMD

Brightness1,500 nits

Refresh rate7,680 Hz

Colour depth16-bit

Viewing angle160° / 160°

Cabinet

Cabinet size500 × 500 mm

Resolution / cabinet104 × 104

Weight8 kg

Service accessFront

MountingFixed indoor

Power & environment

Avg power≈ 51 W / cabinet

Max power≈ 152 W / cabinet

IP ratingIP30 (indoor)

Lifespan100,000 hrs

Applications

Lobby featuresMuseumsRetail flagshipStage floors

FAQ

Can you match our architect's drawing?

Yes — we scope structure, power and content pipeline against the drawing before quoting.

Will it look sharp?

Viewing distance & image quality

Minimum viewing distance

4.81 m

Closest a viewer should stand

Comfortable distance

12 m

Where the image looks its best

Pixels per m²

43,222

Density at this pitch

Brightness

1,500 nits

Comfortable indoors

Rule of thumb: minimum viewing distance in metres \u2248 pixel pitch in millimetres. Final figures confirmed on site survey.

What you actually receive

A complete system, not just panels

LED cabinets & modules

ROE Visual Black Marble Floor 4.81 · 500×500 mm

Control system

NovaStar MX20 + receiving cards

Power & data cabling

Looms, distribution and redundancy

Mounting structure

Wall frame, floor stand or truss

Spare modules & PSU

Held in Kathmandu for fast swap

Commissioning

Calibration, content test, handover training

How we deliver it

Site survey

We measure the space, power and sightlines — free across Nepal.

Structure & install

Fabrication, mounting and cabling by our certified engineers.

Commissioning

Calibration, controller setup and operator training.

AMC & support

Annual maintenance with spares stocked locally.

Warranty

Up to 3 years

Honoured locally in Nepal

Indicative lead time

2\u20134 weeks

Ex-stock items ship faster

Certifications

CERoHSFCCISO 9001
